OUR ROBOTS / HIGH-PAYLOAD PALLETIZING

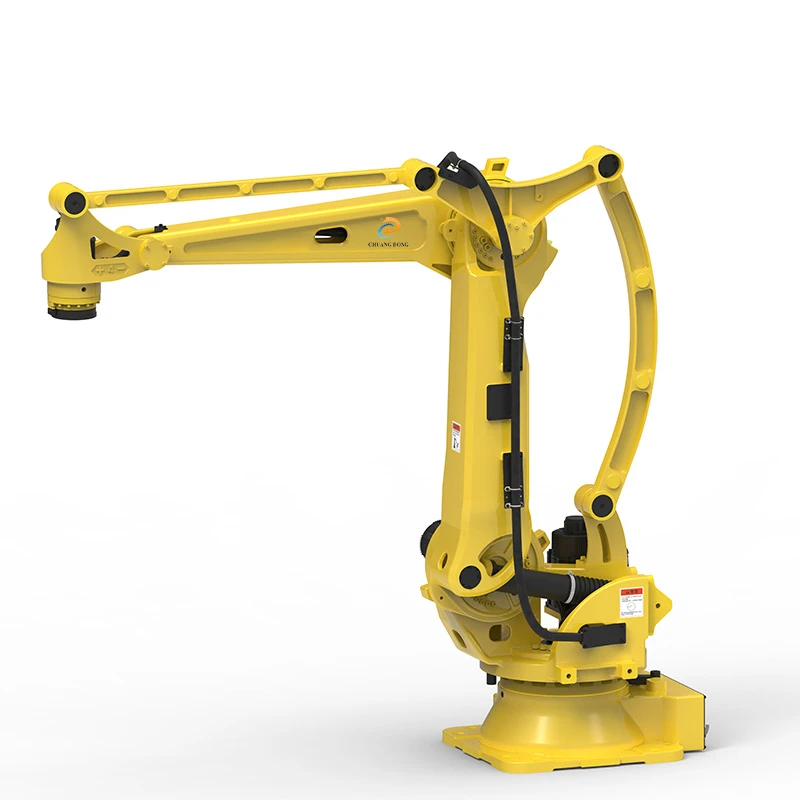

CD1300M-3200
300 kg industrial palletizing robot with a 3,200 mm working radius.
Selection starts with the total load, tooling, working envelope and target cycle.
TECHNICAL DETAILS
Plan with the
right specifications.
Rated payload includes the gripper and other end-of-arm equipment. Rated specifications are not a guarantee of throughput for every application.
Ask us to confirm the final robot, controller, gripper and safety scope in your written quotation.
| Rated payload | 300 kg |
|---|---|
| Working radius | 3,200 mm |
| Repeatability | ±0.2 mm |
| Robot body weight | 1,200 kg |
| Power capacity | 12 kVA |
| Motion | 4 axes |
| Mounting | Floor mounted |
Send the details that shape your cell.
02 / Output
Target bags or cases per minute, pallet pattern and maximum stack height.
03 / Installation
Available space, conveyor height, site power and destination country.
