OUR ROBOTS / COMPACT PALLETIZING

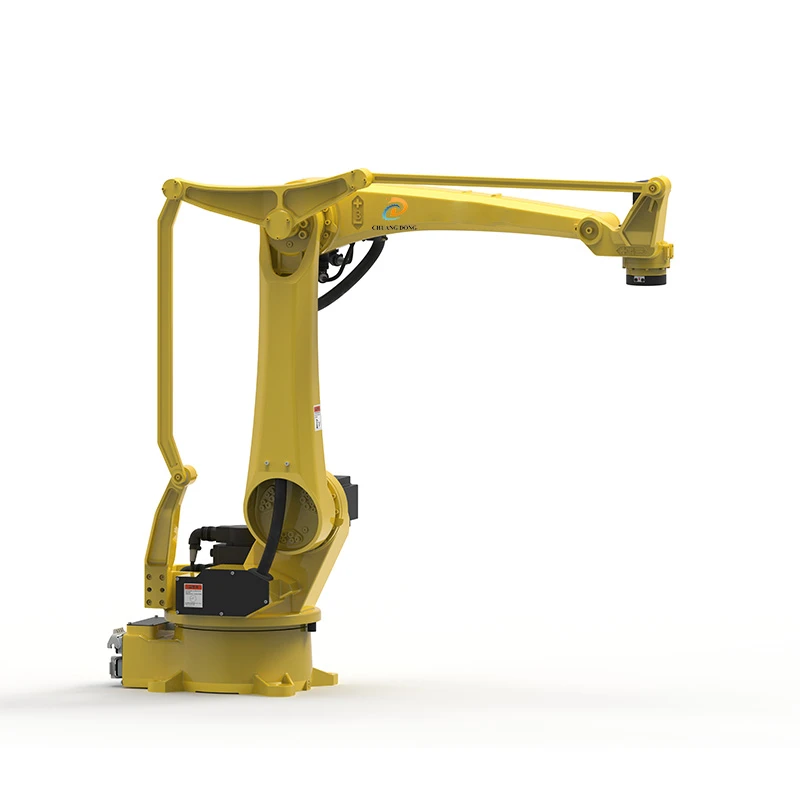

CD1030M-1835
30 kg industrial palletizing robot with a 1,835 mm working radius.
Selection starts with the total load, tooling, working envelope and target cycle.
TECHNICAL DETAILS
Plan with the
right specifications.
Rated payload includes the gripper and other end-of-arm equipment. Rated specifications are not a guarantee of throughput for every application.
Ask us to confirm the final robot, controller, gripper and safety scope in your written quotation.
| Rated payload | 30 kg |
|---|---|
| Working radius | 1,835 mm |
| Repeatability | ±0.05 mm |
| Robot body weight | 220 kg |
| Power capacity | 3.0 kVA |
| Motion | 4 axes |
| Mounting | Floor mounted |
